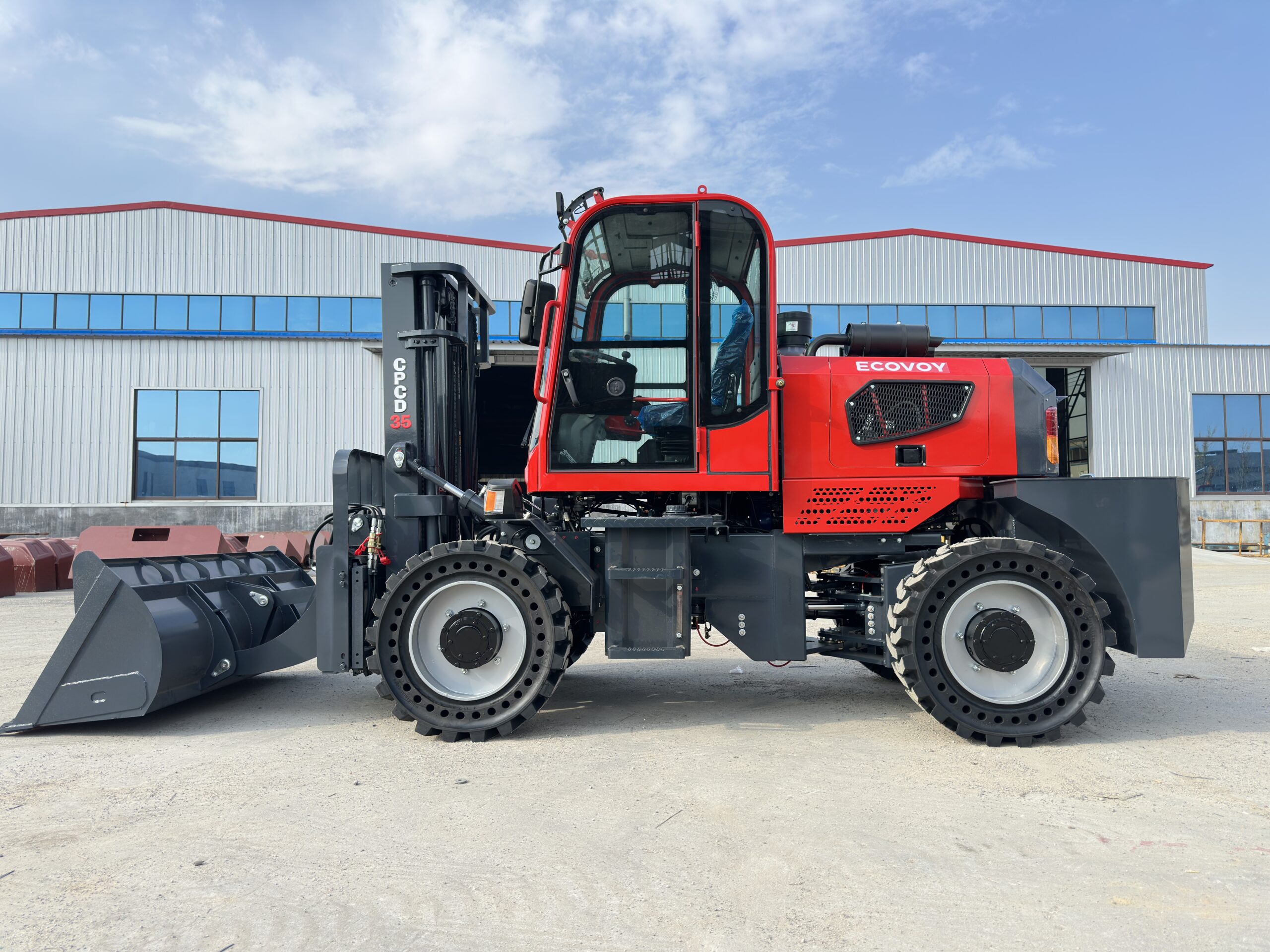

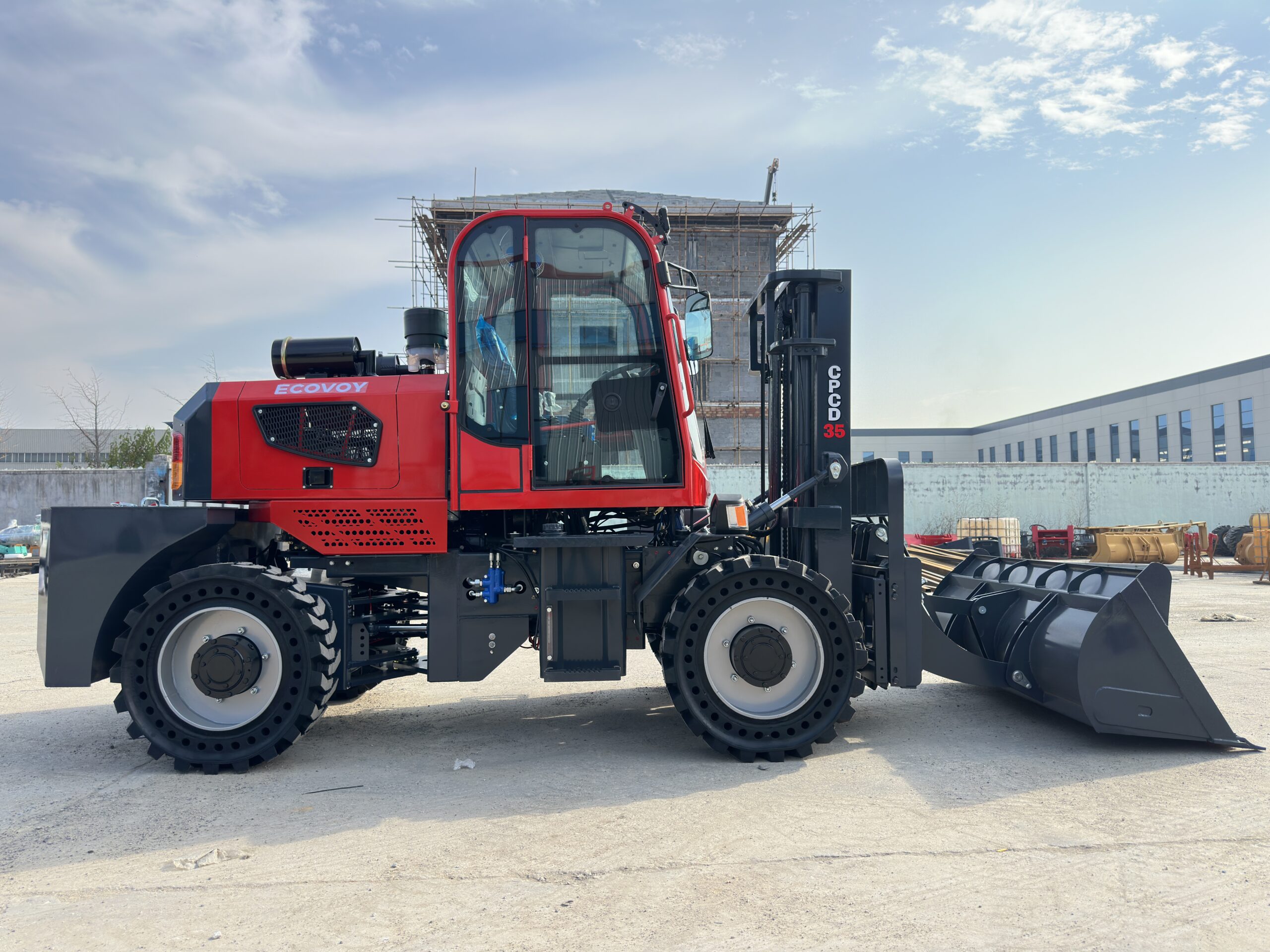

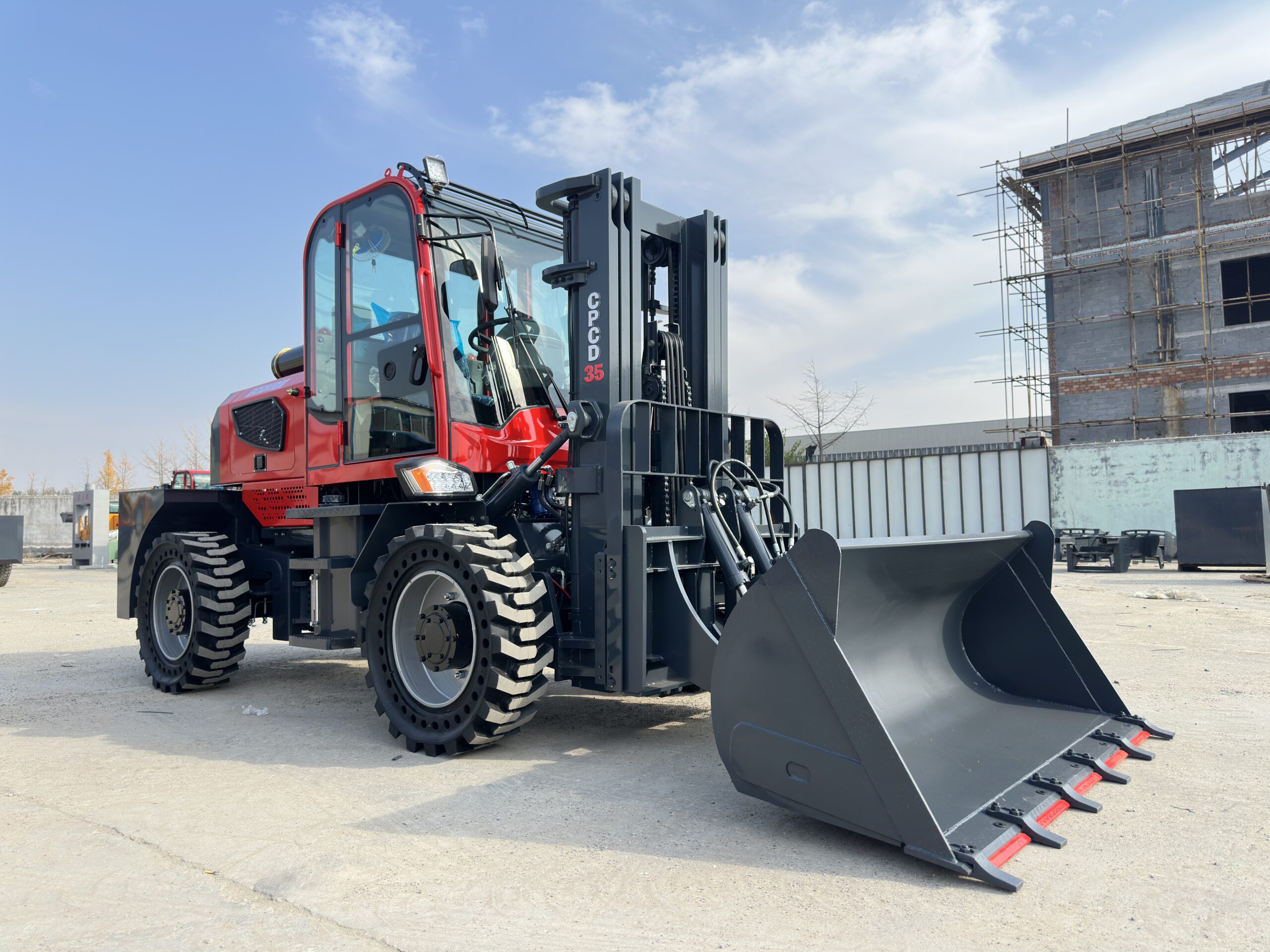

Rough Terrain Forklift(3.5Ton)

Meet the Ecovoy Series-Your All-in-One Material Handing Solution

✅ One machine, multiple functions – reduce the need for dedicated equipment

✅ Quick-attach compatibility – maximize uptime and adapt to changing tasks

✅ Built for efficiency – ideal for mixed workflows and tight spaces

It’s a versatile all-in-one solution for lifting and transporting, with a quick-attach system to easily switch between various attachments

Description

3.5T(Front wheel steering)
Engine Yunnei 490/58KW
Engine options available
Tire 20.5/70-16 Maximum load 3500kg
Axle Small wheel
Gearbox Jinlit 265
Gantry Width 160mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:300mm  R:250mm Driving method 4WD
Total weight 4410kg Minimum ground clearance 240mm
Forward tilt angle 12° Gantry static height 2200MM
Size 3900/1800/2450mm Basement:2.2M
3.5T(Rear wheel steering)
Engine Yunnei 490/58KW
Engine options available
Tire 20.5/70-16 Maximum load 3500kg
Axle Small wheel
Gearbox Jinlit 265
Gantry Width 160mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:200mm  R:250mm Driving method 4WD
Total weight 4400kg Minimum ground clearance 240mm
Forward tilt angle 12° Gantry static height 2240MM
Size 3700/1800/2450mm Basement:2.2M
