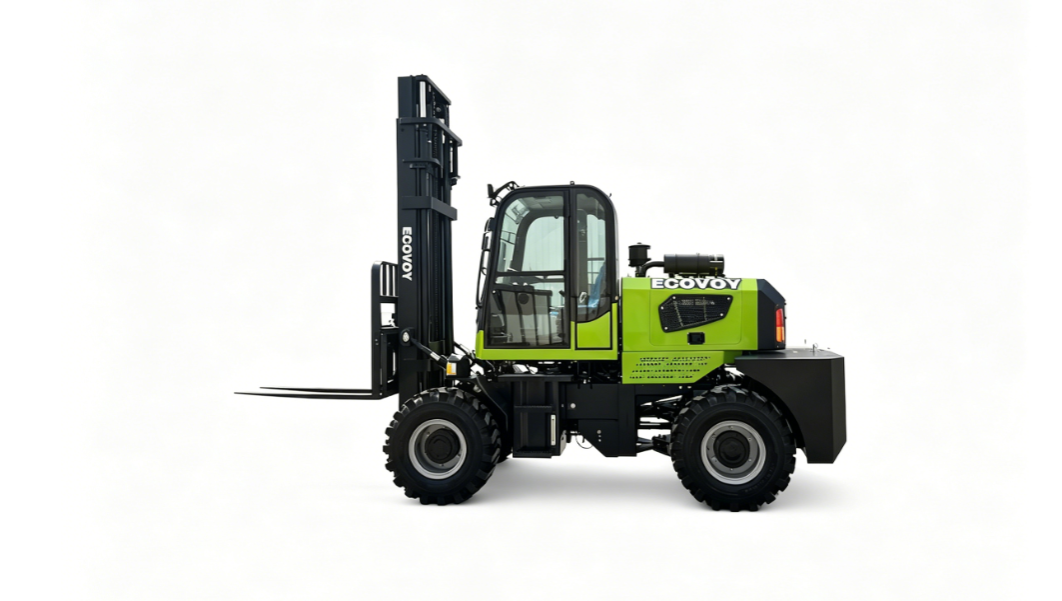

Rough Terrain Forklift(1.5T)

Meet the Ecovoy Series-Your All-in-One Material Handing Solution

✅ One machine, multiple functions – reduce the need for dedicated equipment

✅ Quick-attach compatibility – maximize uptime and adapt to changing tasks

✅ Built for efficiency – ideal for mixed workflows and tight spaces

It’s a versatile all-in-one solution for lifting and transporting, with a quick-attach system to easily switch between various attachments

Description

1.5T(Front wheel steering)
Engine Yunnei 490/37KW
Engine options available
Tire 10.00-16 Maximum load 1500kg
Axle 130
Gearbox 265
Gantry Width 148mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:200mm  R:150mm Driving method 4WD
Total weight 2680kg Minimum ground clearance 250mm
Forward tilt angle 12° Gantry static height 2220mm
Size 3500/1300/2300mm
1.5T(Rear wheel steering)
Engine Yunnei 490/37KW
Engine options available
Tire 10.00-16 Maximum load 1500kg
Axle 130
Gearbox 265
Gantry Width 148mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:200mm  R:150mm Driving method 4WD
Total weight 2680kg Minimum ground clearance 230mm
Forward tilt angle 12° Gantry static height 2200mm
Size 3100/1600/2250mm
