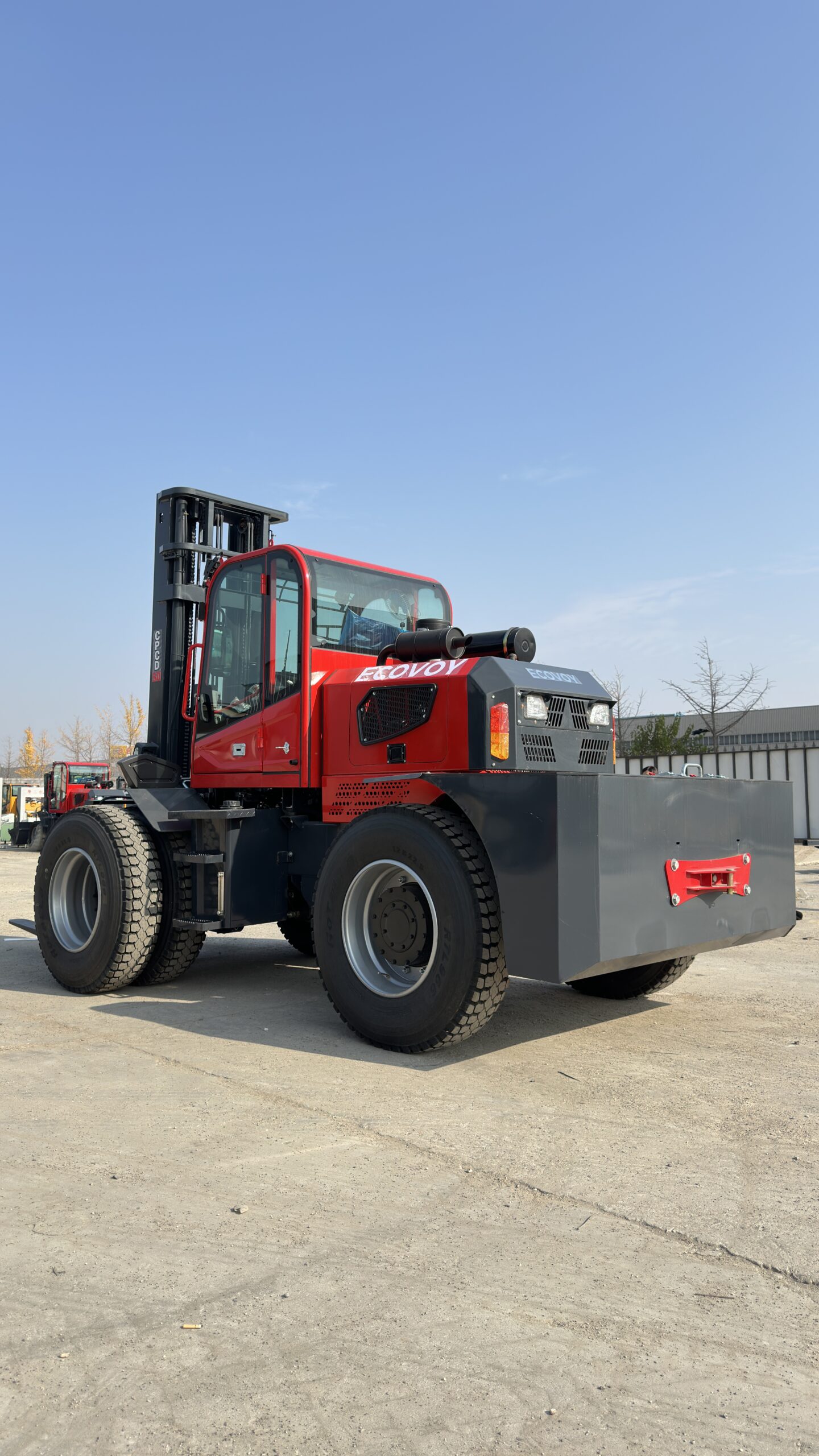

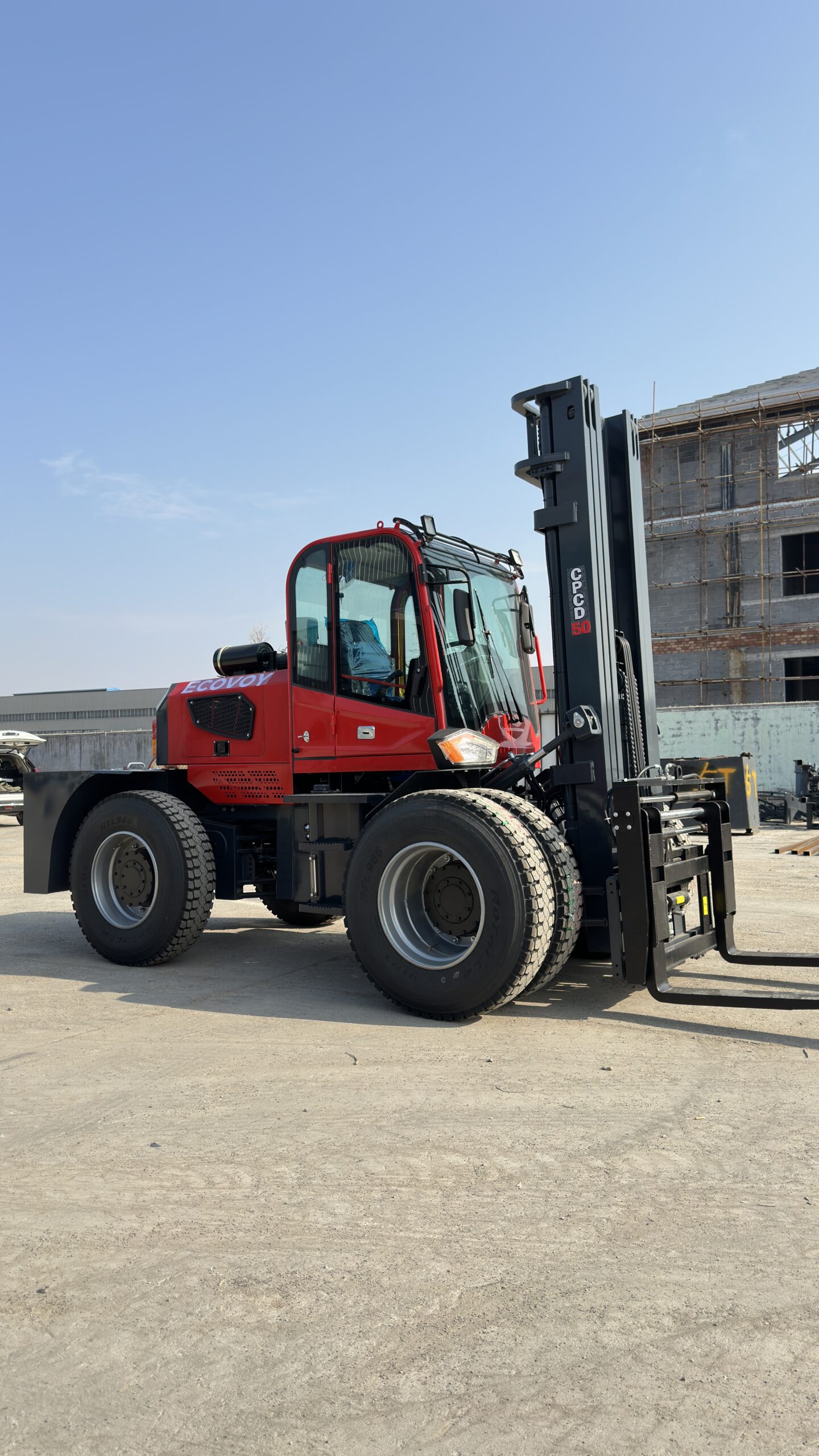

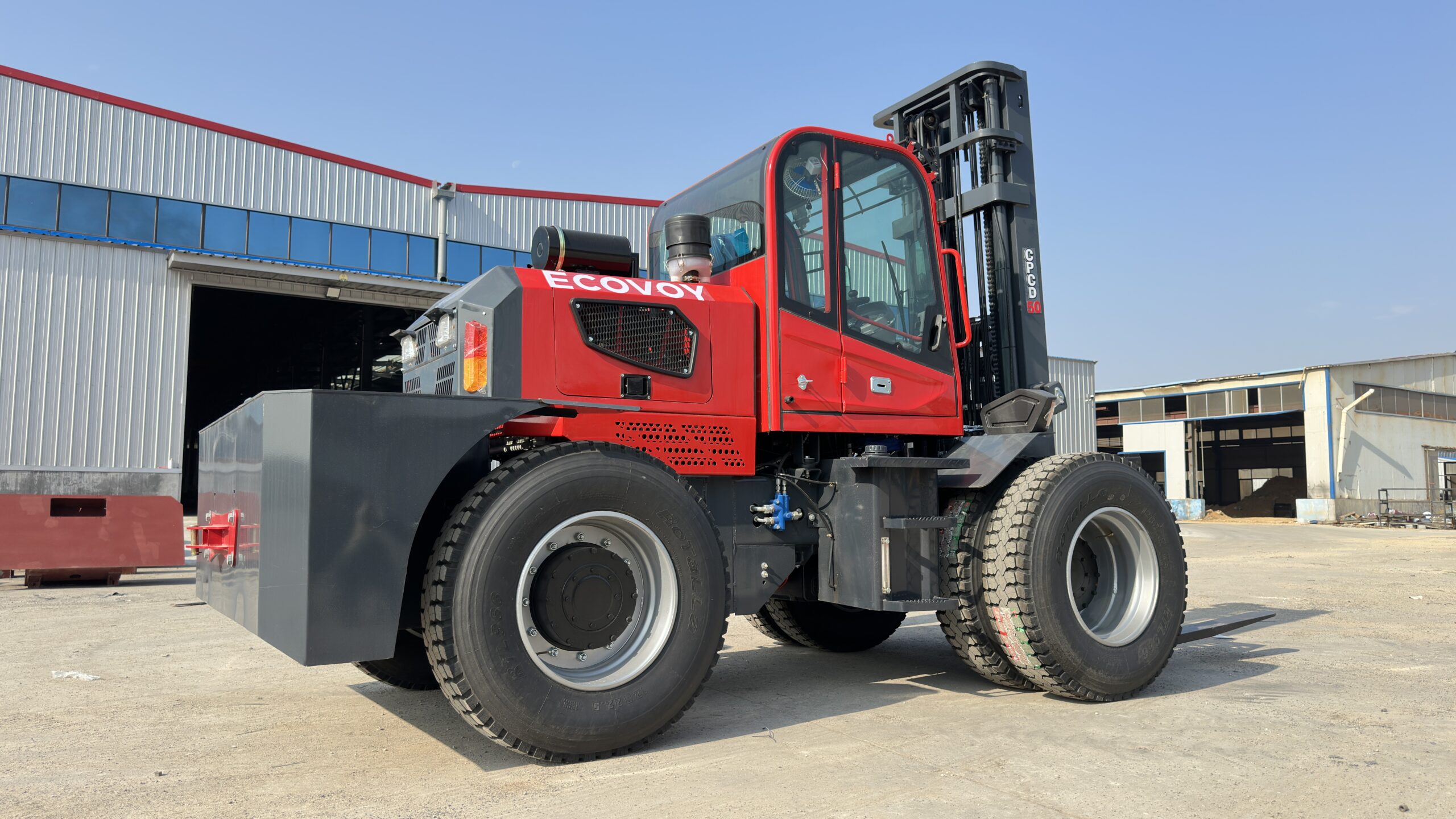

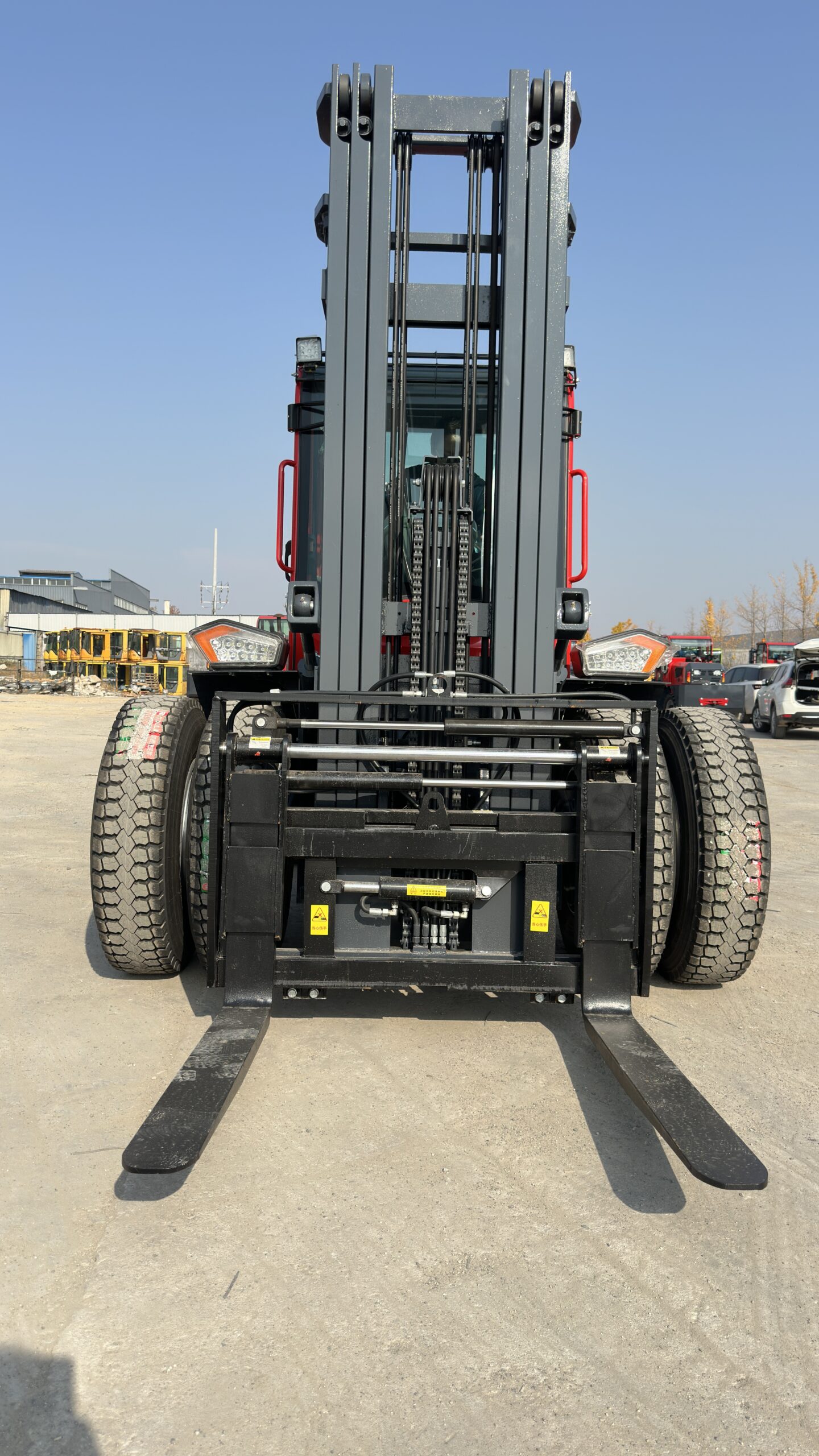

Rough Terrain Forklift(5.0Ton)

Meet the Ecovoy Series-Your All-in-One Material Handing Solution

✅ One machine, multiple functions – reduce the need for dedicated equipment

✅ Quick-attach compatibility – maximize uptime and adapt to changing tasks

✅ Built for efficiency – ideal for mixed workflows and tight spaces

It’s a versatile all-in-one solution for lifting and transporting, with a quick-attach system to easily switch between various attachments

Description

5T(Front wheel steering)
Engine Yunnei 4102 Supercharged/76KW
Engine options available
Tire 16/70-24 Maximum load 5000kg
Axle Large wheel rim
Gearbox Jinlit 280 Turning radius 4800mm
Gantry Width 180mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:500mm  R:300mm Driving method 4WD
Total weight 5700kg Minimum ground clearance 330mm
Forward tilt angle 12° Gantry static height 2400mm
Size 4400/2085/2650mm
5T(Rear wheel steering)
Engine Yunnei 4102 Supercharged/76KW
Engine options available
Tire 16/70-24 Maximum load 5000kg
Axle Large wheel rim
Gearbox Jinlit 280 Turning radius 3900mm
Gantry Width 180mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:250mm  R:300mm Driving method 4WD
Total weight 5700kg Minimum ground clearance 330mm
Forward tilt angle 12° Gantry static height 2330mm
Size 3900/2080/2650mm
