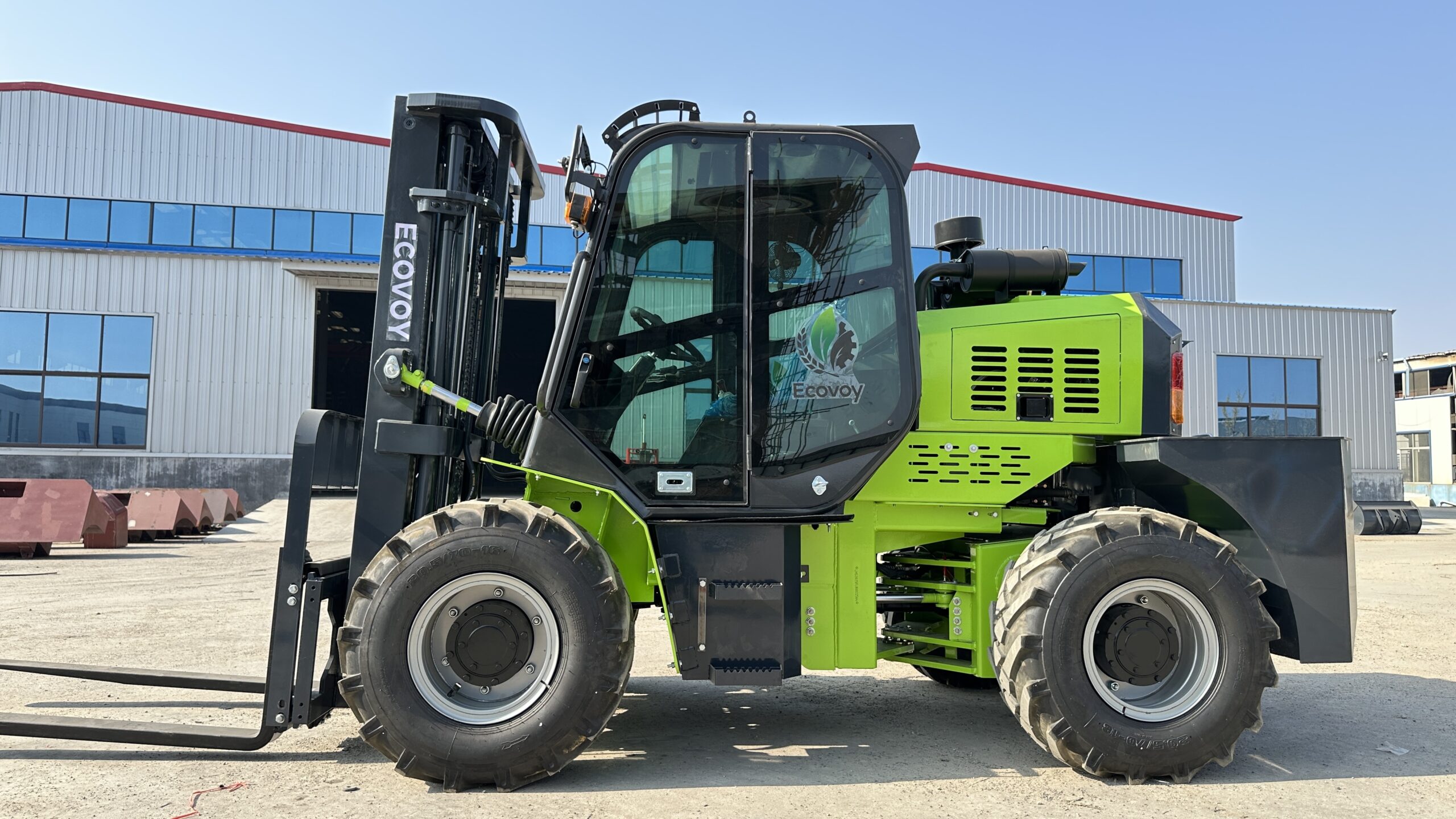

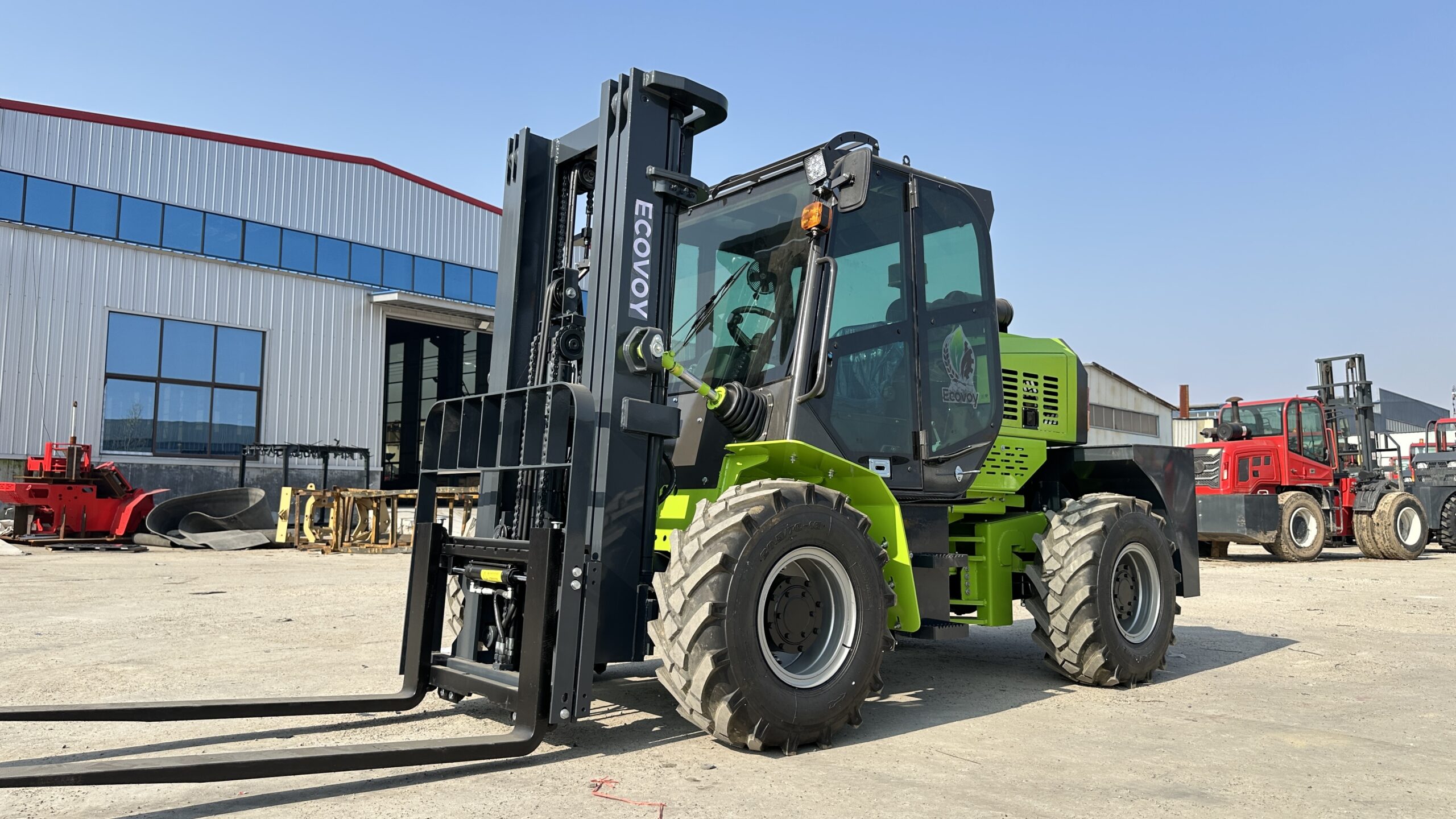

Rough Terrain Forklift(4.0Ton)

Meet the Ecovoy Series-Your All-in-One Material Handing Solution

✅ One machine, multiple functions – reduce the need for dedicated equipment

✅ Quick-attach compatibility – maximize uptime and adapt to changing tasks

✅ Built for efficiency – ideal for mixed workflows and tight spaces

It’s a versatile all-in-one solution for lifting and transporting, with a quick-attach system to easily switch between various attachments

Description

4T(Front wheel steering)
Engine Yunnei 4100 Supercharged/65KW
Engine options available
Tire 16/70-20 Maximum load 4000kg
Axle Middle wheel edge
Gearbox Jinlit 265 Turning radius 4800mm
Gantry Width 180mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:400mm  R:300mm Driving method 4WD
Total weight 5200kg Minimum ground clearance 300mm
Forward tilt angle 12° Gantry static height 2350mm
Size 4300/1980/2600mm
4T(Rear wheel steering)
Engine Yunnei 4100 Supercharged/65KW
Engine options available
Tire 16/70-20 Maximum load 4000kg
Axle Middle wheel edge
Gearbox Jinlit 265 Turning radius 3800mm
Gantry Width 180mm Lifting height 3000mm
Climbing angle <35° Fork length 1220mm
Frame articulation F:200mm  R:250mm Driving method 4WD
Total weight 5200kg Minimum ground clearance 300mm
Forward tilt angle 12° Gantry static height 2300mm
Size 3800/1980/2600mm
