Description
| Overall Operating Weight | 7700KG |
| Transport Dimension | |
| L*W*H mm | 6000×2450×3700(mm) |
| Wheel base | 2250mm |
| Min. Ground Clearance | 300mm |

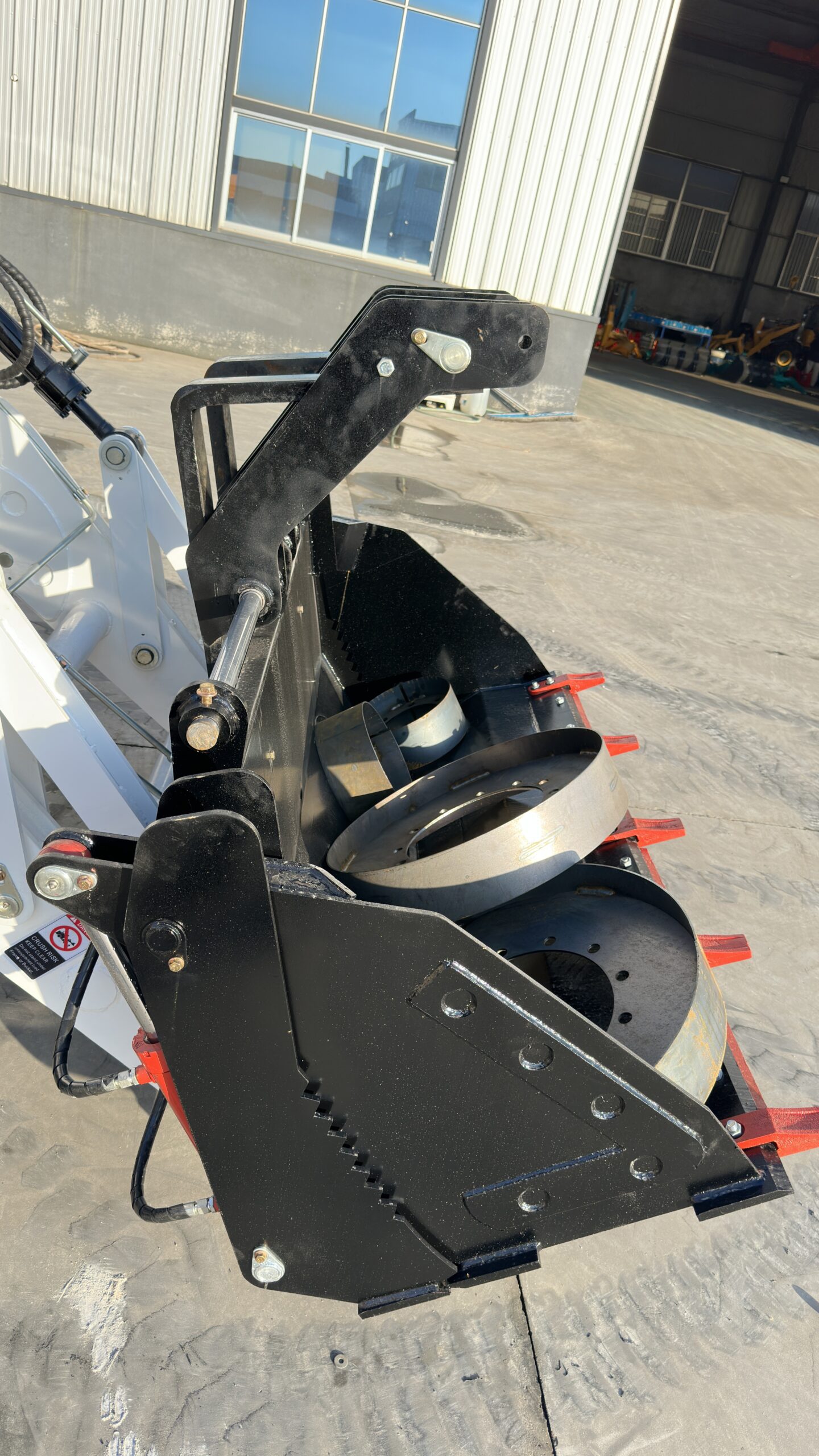

| Bucket Capacity | 1.5m3 |
| Breakout Force | 38KN |
| Loading Lifting Capacity | 2800KG |
| Bucket Dumping Height | 2800mm |
| Bucket Dumping Distance | 1062mm |

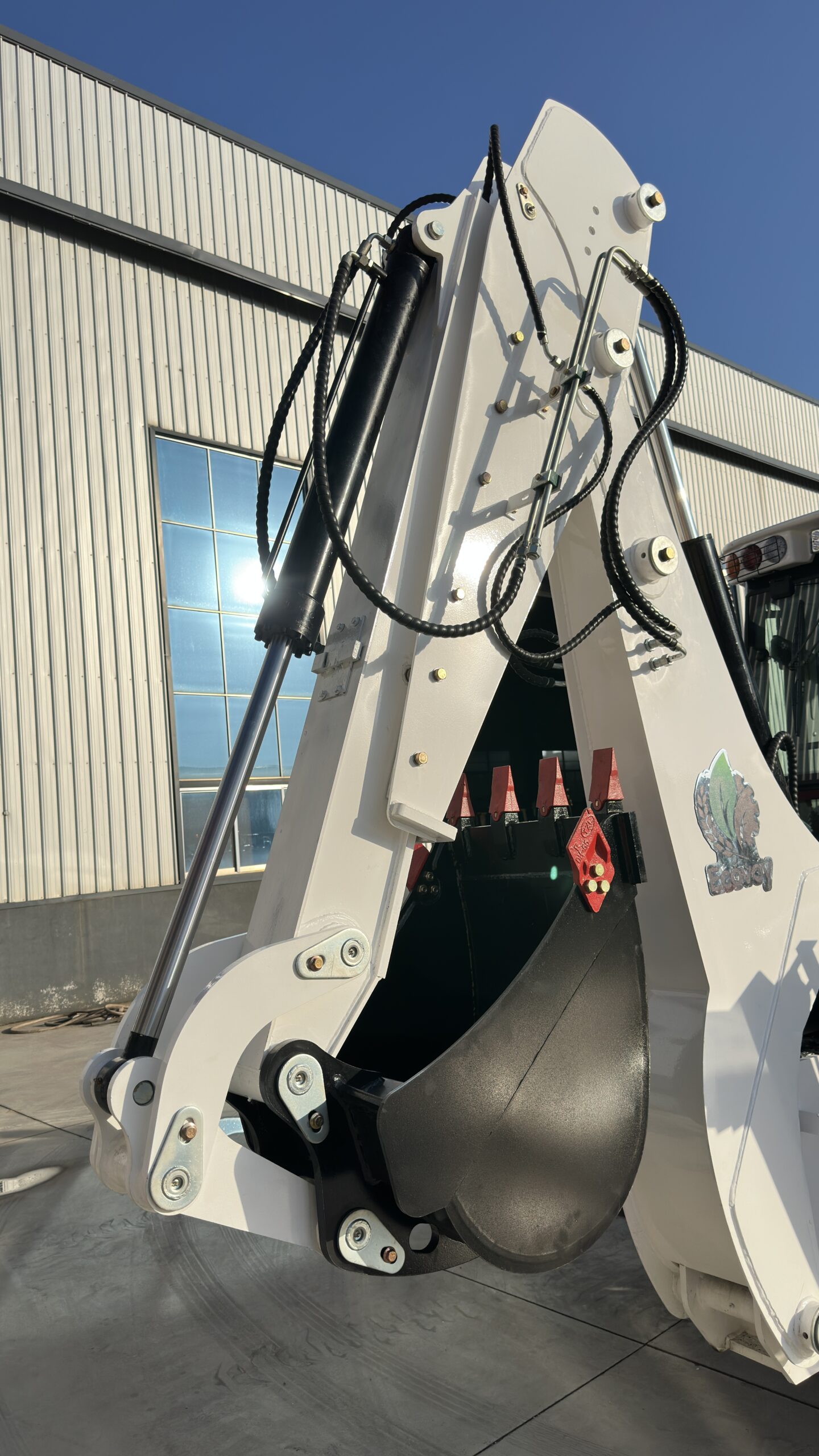

| Backhoe Capacity | 0.3m3 |
| Max. Digging Depth | 4100mm |
| Optional Digging Depth | 5300mm(The excavator arm is retractable) |
| Swing Angle of backhoe | 190o |
| Max. Pulling Force | 39KN |
| Engine | |
| Brand/Model | Cummins |
| Type | In Line,Direct injection,Four-Stroke,Water Cooling |
| Rated Power | 75KW |
| Optional Engine | YUCHAI/YCD4T33T6-115(85KW)
CUMMINS 93KW 4BT3.9-C125 CUMMINS EURO5 75KW QSB3.9-C100 |
| Steering System | |
| Steering Angle | ±36 o |
| Min. turning radius | 6581mm |
| Pressure of the system | 12Mpa |
| Axle | |
| Brand | Front wheel drive steering axle |
| Main Transmission Type | Double Reduction |
| Final Reducer | Single Stage Final Reducer |
| Rated Loader of Axle | 4/10.5t |
| Transmission System | |
| Torque Converter | |
| Model | YJ280 |
| Type | Single-stage Three Elements |
| Cooling Method | Oil-cooling Pressure Circulation |
| Gearbox | |
| Type | Fixed Shaft Power Transmission |
| Gears | Move forward 2 steps, back 2 steps |
| Max.Speed | 30Km/h |
| Tyre | |
| Model | (F)14-17.5
(R)19.5L-24 |
| Pressure of Front wheel | 0.3Mpa |
| Pressure of Back Wheel | 0.4 Mpa |
| Brake System | |
| Service Brake | Air Over Oil Caliper Brake |
| External Type | |
| Self-regulation | |
| Self-balance | |
| Emergency Brake | Operation Power Implementing brake |
| Manual Operation Power Terminating Brake | |
| Hydraulic System | |
| Pressure of Hydraulic System | 22Mpa |
| Digging Power of Excavator Grab | 46.5KN |
| Digging Power of Dipper | 31KN |
| Bucket Lifting Time | 5.4S |
| Bucket Lowering Time | 3.1S |
| Bucket Discharge Time | 2.0S |
